KW Insulated Copper Conductor Bar System
KW - Conductor Bar

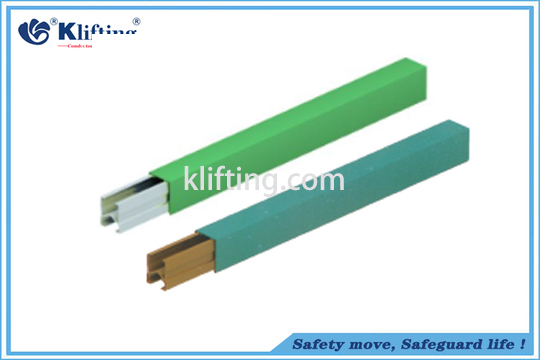

W24 Copper Conductor Bar (250A--800A)
Support spacing: 1.5m. Standard Length: 6.0m, other lengths on request.
|
Type |
Material |
Cross section (mm2) |
Nominal current ( A) |
Leakage- distance (mm) |
Resistance (Ω/km) |
Weight (Kg/m) |
No. |
|
KW-HD-160/250 |
Aluminum |
160 |
250 |
45 or 80 |
0.203 |
0.63 |
240160 |
|
KW-HD-180/300 |
Aluminum |
180 |
300 |
45 or 80 |
0.187 |
0.71 |
240300 |
Copper conductor bar.
Support spacing: 1.5m. Standard Length: 6.0m, other lengths on request.
|
Type |
Material |
Cross section (mm2) |
Nominal current ( A) |
Leakage- distance (mm) |
Resistance (Ω/km) |
Weight (Kg/m) |
No. |
|
KW-HD-160/500 |
Copper |
160 |
500 |
45 or 80 |
0.112 |
1.70 |
240500 |
|
KW-HD-180/600 |
Copper |
180 |
600 |
45 or 80 |
0.098 |
1.90 |
240600 |
|
KW-HD-200/700 |
Copper |
200 |
700 |
45 or 80 |
0.087 |
2.10 |
240700 |
|
KW-HD-230/800 |
Copper |
230 |
800 |
45 or 80 |
0.076 |
2.30 |
240800 |
For other types or more details, please download the catalogue.
